1 4
Aluminum Resin Vat

Phrozen Quick-Release Resin Vat for Mighty Revo 16K MAX

ETA: End Of December

€173,82 €204,49
Tax included Shipping calculated at checkout.
  • Large 2L capacity that holds about 2.5 bottles of resin for overnight prints without refilling.
  • Four-sided latch-and-frame release film design which allows a 3-minute film swap without a screwdriver or extra tools.
  • Extra-wide handles and an enlarged pour spout make the large vat easier to hold, pour, and drain with less dripping.
  • Standard resin vat included with the printer, designed for quick film replacement and easier maintenance.
Shipping & Tariff
Return & Warranty

Product Highlights

Product Overview

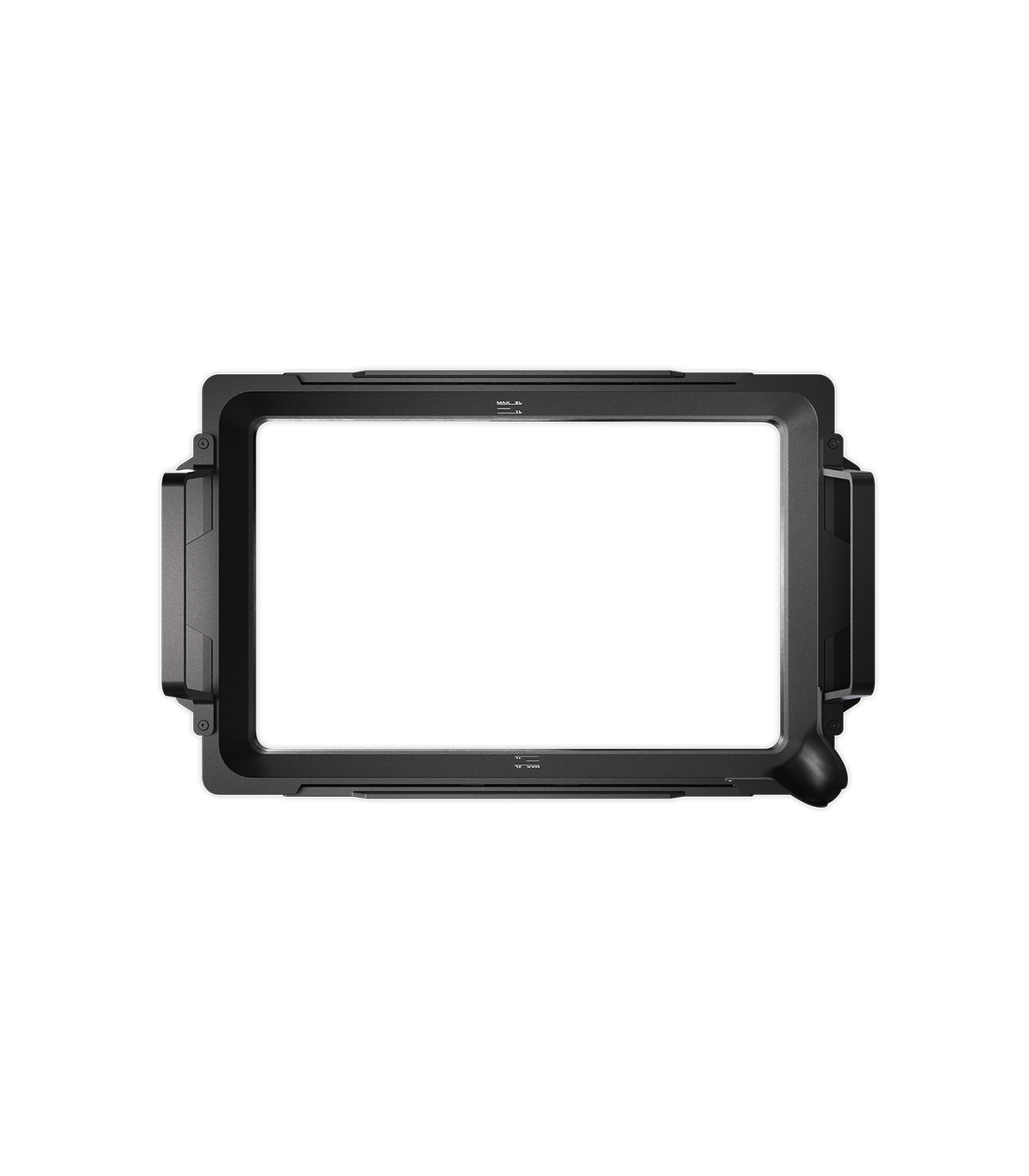

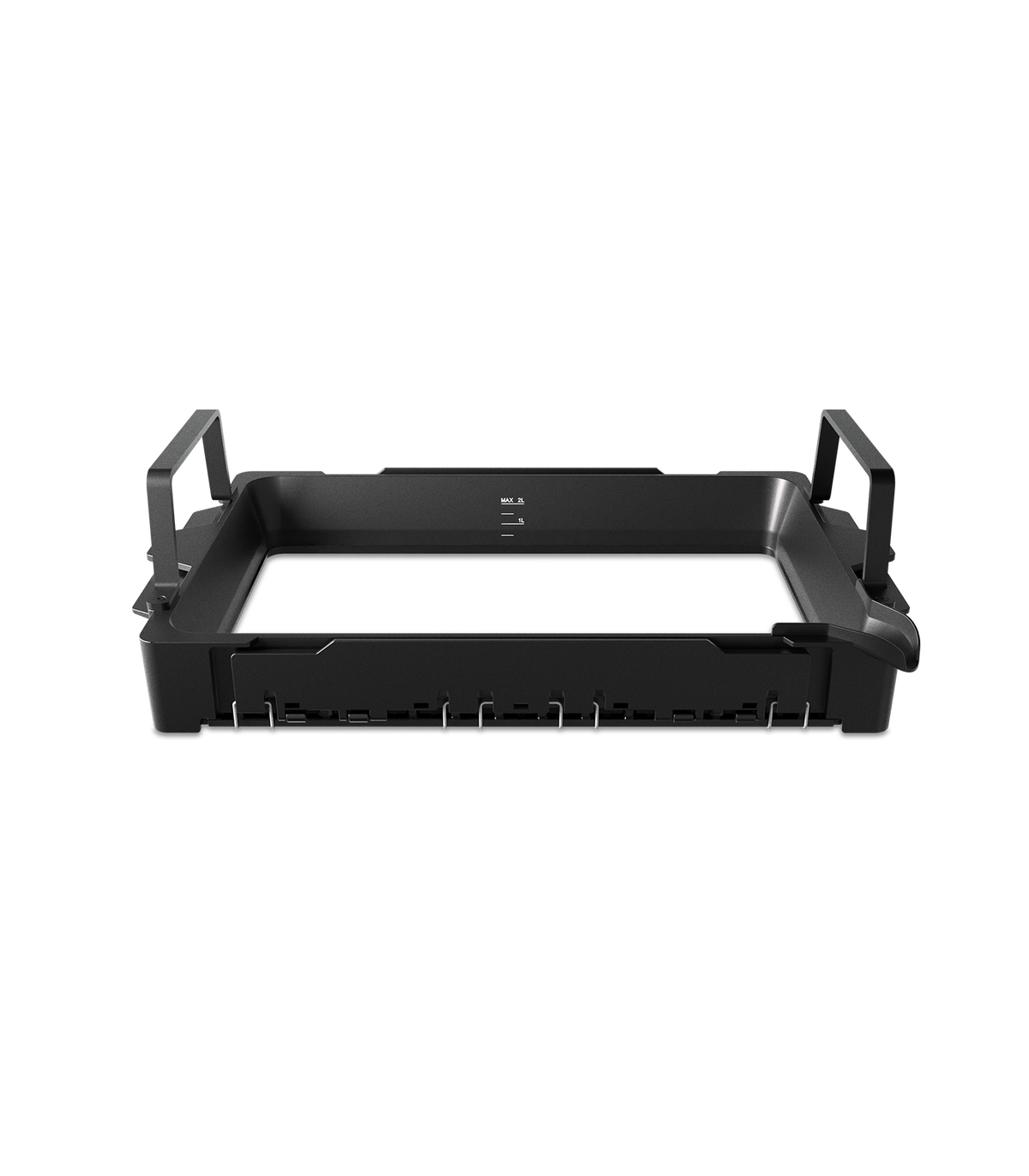

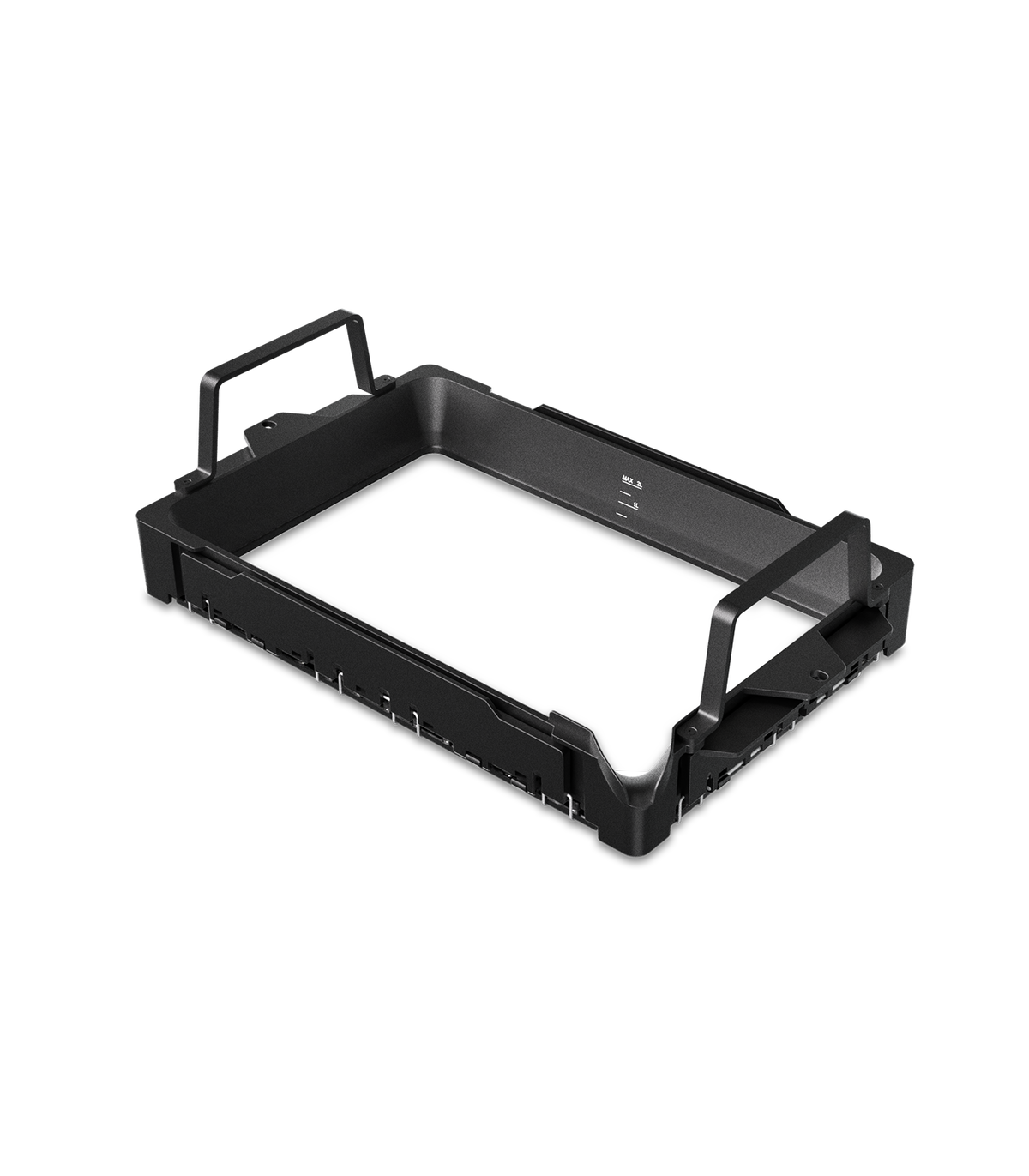

The Phrozen Quick-Release Resin Vat is the standard 2L resin vat for the Sonic Mighty Revo 16K MAX. Its latch-and-frame release film design replaces traditional screw-based film installation, so you can swap the film quickly without a screwdriver or extra tools. The 2L capacity holds about 2.5 bottles of resin for overnight prints without refilling, while the extra-wide handles and pour spout make the vat easier to hold, pour, and drain with less dripping.

What is a resin vat?

A resin vat is a key component of an MSLA resin 3D printer that holds the photopolymer resin. During printing, UV light passes through the release film at the bottom of the vat, such as FEP, PFA, or ACF, curing the resin layer by layer to form the model. A stable, durable vat helps the print process run smoothly, keeps resin flow even, and supports consistent model quality.

What Is a Quick-Release Resin Vat?

A Quick-Release Resin Vat is designed to make release film replacement faster. The film is secured with fixing plates and latches instead of traditional screws, so you can replace the film without a screwdriver or extra tools and reduce maintenance time.

The official Phrozen aluminum resin vat is CNC-machined, then finished with sandblasting and powder coating for high strength, durability, and long-term structural stability. It also comes with a pre-installed release film, so you can start printing right after installation.

Key Features

  • Quick-release film structure: Fixing plates and latches replace traditional screw-based film installation, allowing faster film swaps without a screwdriver or extra tools.
  • Large 2L capacity: Holds about 2.5 bottles of resin at once, supporting overnight large-format prints without mid-print refills.
  • Extra-wide handles + pour spout: The large vat is easier to grip and carry, and the enlarged pour spout helps reduce dripping when pouring resin out.
  • Full aluminum CNC body: CNC-machined aluminum gives the vat a strong, durable structure that helps maintain shape and sealing over long-term use.
  • Sandblasted + powder-coated surface: Improves durability, reduces wear, and helps reduce resin residue sticking to the vat.
  • Pre-installed release film: The vat ships with release film already installed, so no extra setup is needed before first use.
  • Official compatible design: Each vat is made for its matching Phrozen Sonic printer model, ensuring the dimensions and mounting structure fit properly.

Specs
  • Compatible Model: Sonic Mighty Revo 16K MAX 
  • Material: Aluminum alloy
  • Capacity: 2L 
  • Fill Indicator: Internal MAX fill line 
  • Quick-Release Structure: Fixing plates and latches, including silicone sheets.
  • Heating Function: No. For resin vat heating, choose the Heated Resin Vat.
Three-Step Film Swap

  1. Open the fixing plates on all four sides and remove the frame.

  1. Install the new release film onto the frame.

  2. Lock the latches and press the fixing plates back into place.

For full installation instructions, please refer to the instruction card included with the product.

When Do I Need to Replace My Resin Vat?

Resin vats are built for long-term use, but you may need to replace the vat in the following cases:

  • Warping or poor sealing

  • Damaged mounting structure

  • Heavy wear on the vat surface

  • Loose or damaged release film locking plates and buckle mechanism, affecting the seal

If only the release film is damaged, replacing the film alone is usually enough.

Why Choose the Official Phrozen Quick-Release Resin Vat?

Using the official Quick-Release Resin Vat helps maintain printer stability and print quality:

  • Quick-release film structure for faster film replacement.

  • Large 2L capacity helps long overnight prints run without interruption.

  • Extra-wide handles and pour spout make the vat easier to hold and pour with less dripping.

  • CNC-machined aluminum alloy structure.

  • Durable sandblasted and powder-coated surface.

  • Pre-installed release film, ready to use out of the box.

Use and Care Tips

To help extend the life of the resin vat, follow these care tips:

  • Clean the vat after every print.

  • Avoid sharp tools near the release film.

  • Replace the release film immediately if it is damaged.

  • Empty the vat before long-term storage.

  • Make sure the fixing plates and latches are fully locked after opening or closing them to avoid sealing issues.

Frequently Asked Questions

What does a resin vat do in a 3D printer?

A resin vat holds photopolymer resin and lets UV light pass through the release film at the bottom, curing the resin layer by layer to form the model.

How is the Quick-Release Resin Vat different from a standard resin vat?

The Quick-Release Resin Vat secures the release film with fixing plates and latches instead of traditional screws. You can replace the film without a screwdriver or extra tools, making maintenance faster and easier.

Can I switch between the Quick-Release Resin Vat and the Heated Resin Vat?

Yes. Both vats can be used with Sonic Mighty Revo 16K MAX. The Quick-Release Resin Vat is better for fast film replacement and maintenance efficiency, while the Heated Resin Vat is better for cold environments or high-viscosity resins.

Does the Quick-Release Resin Vat have a heating function?

No. This is the standard Quick-Release Resin Vat and does not include a heating module. For resin vat heating, choose the Heated Resin Vat.

Why does the resin vat use aluminum alloy?

Aluminum alloy offers strong durability andhelps the vatmaintaina stable structure and resist warping over long-term use.

How often does the resin vat need to be replaced?

The resin vat isgenerally builtfor long-term use. If the structure becomes damaged or warped, we recommend replacing it with a new one.

Can I replace the release film on this resin vat?

Yes. If the release film is scratched or damaged, you can replace the film separately. Make sure to usePhrozenPFA (nFEP) Film for Mighty Revo 16K MAX Quick-Release Resin Vat. The size and installation method are different from the Heated Resin Vat version.

Which resins are compatible with the resin vat?

Phrozen resin vats can be used with many types of photopolymer resin.

Sonic Mighty Revo 16K MAX Original Parts

This original parts collection includes heated resin vats, Quick-Release Resin Vats, build plates, LCD screens, release films, and other accessories for daily maintenance, consumable replacement, and workflow upgrades.

  • Made for Sonic Mighty Revo 16K MAX with official Phrozen specifications for stable operation.
  • High-quality manufacturing and precise dimensions support accuracy and durability during long print runs.
  • Suitable for both daily maintenance and performance upgrades, making it a reliable choice for Revo 16K MAX users.

For installation and usage guidance, please refer to the Phrozen Help Center.
