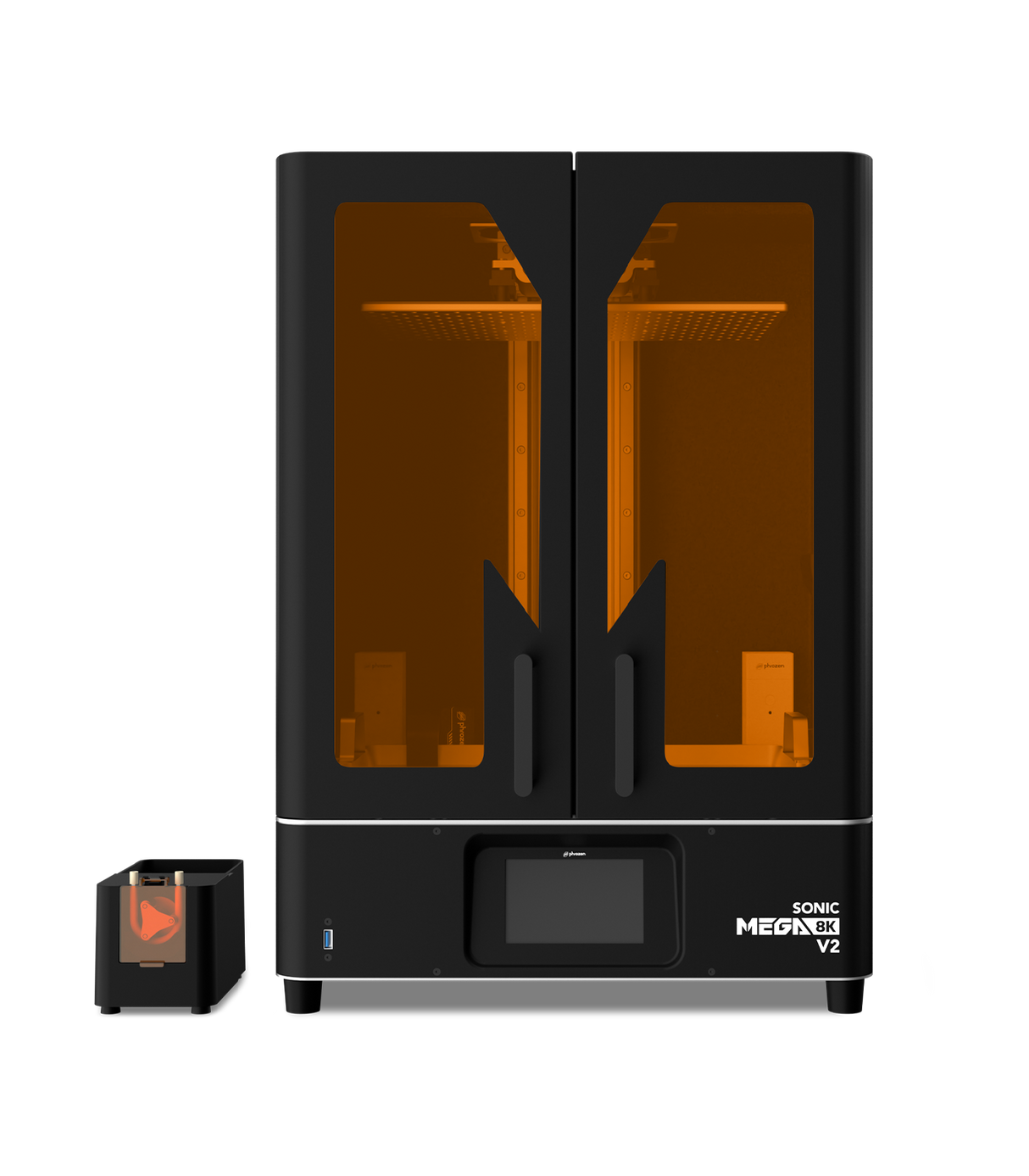

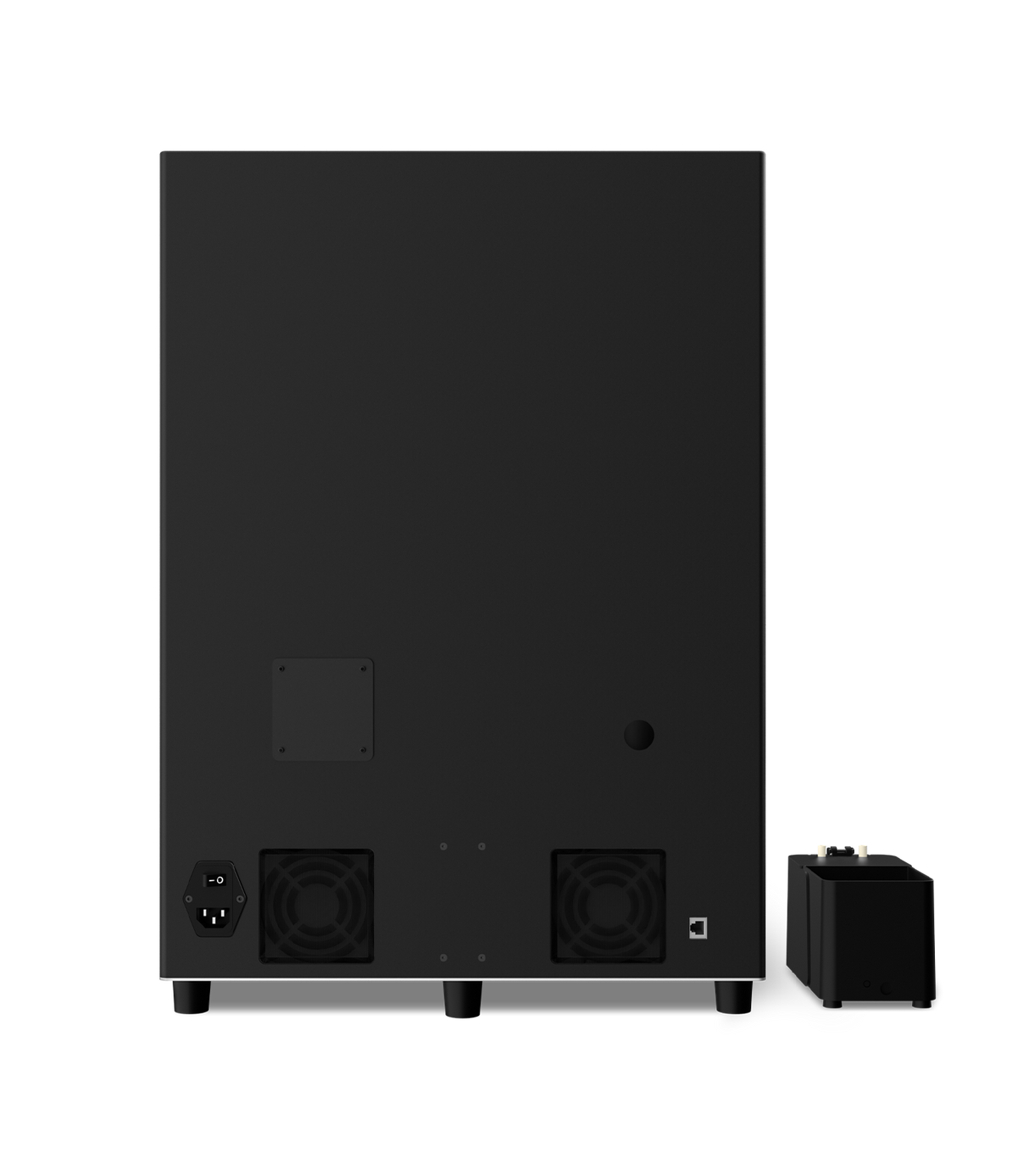

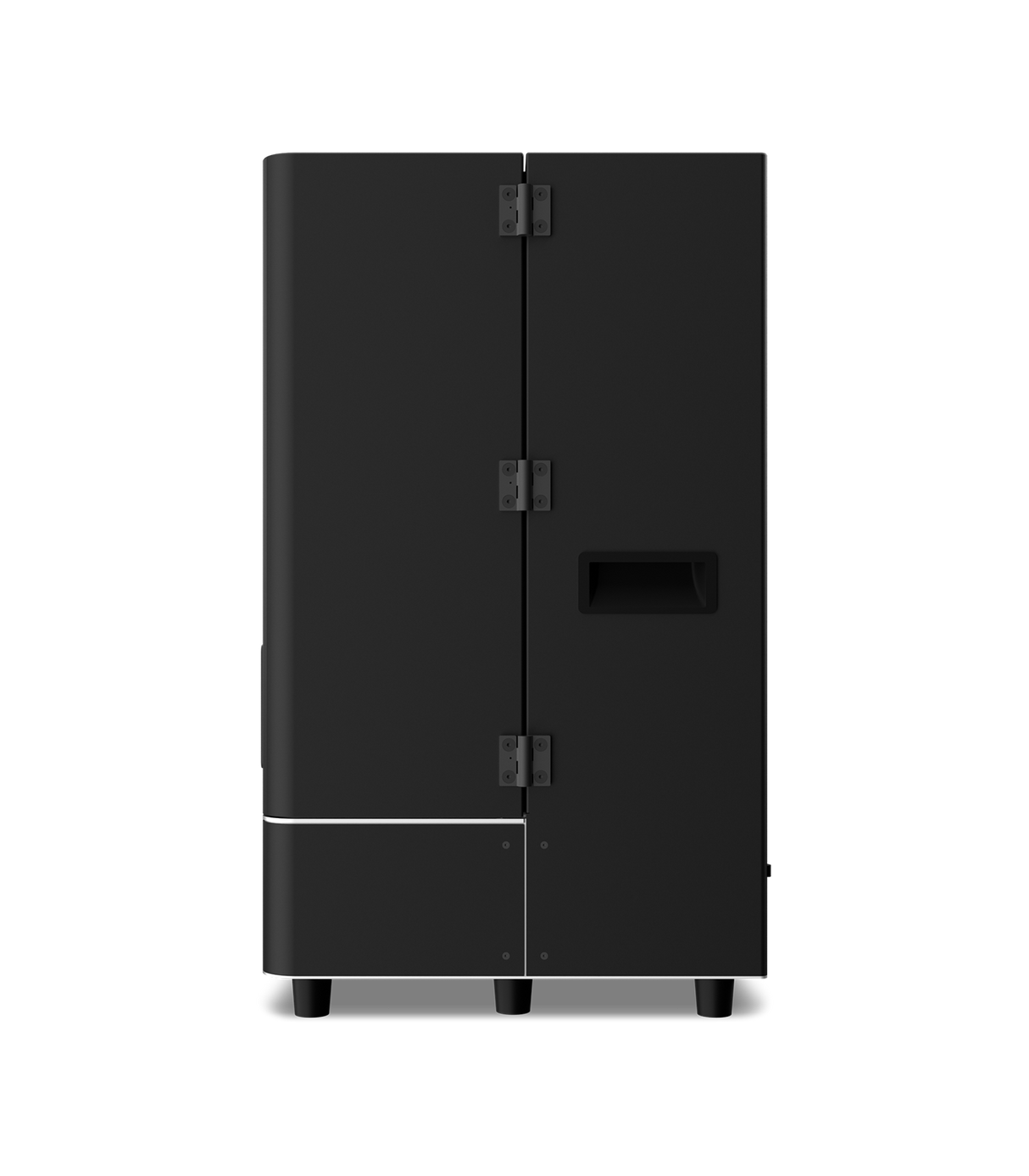

Phrozen Sonic Mega 8K V2 15" LCD 3D Printer

€3.351,70
Tax included Shipping calculated at checkout.
  • High-detailed 8K resolutions.
  • Extra-large 15" XY printing area.
  • Suitable for large creations and mass production.
  • New firmware for up to 50% faster speed.
Shipping & Tariff
Return & Warranty

Specifications

  • Printing Volume
    L33 x W18.5 x H30 cm
  • Printing Speed
    Avg. 400 layers/hr
  • XY Resolution
    43 µm
  • Layer Thickness
    0.01-0.30 mm
  • Light Source
    405nm ParaLED® Matrix 3 0
  • Lcd Specification
    15" 8K Mono LCD
  • Operation
    3.5" Touch Panel
  • Slicer Software
    CHITUBOX V1.9.6 and above(or others)
  • Compatible File Format
    .CTB/.PRZ
  • Connectivity
    USB
  • Printer Size
    L47.2 x W38 x H56.6 cm
  • Printer Weight
    26 kg
  • Power Reruirement
    AC100-240V ; 50/60HZ
  • System Power
    Max 240W
  • Rail
    Dual Linear Rails
  • Screw
    Ball Screw
  • Release Film
    ACF Film

Resource

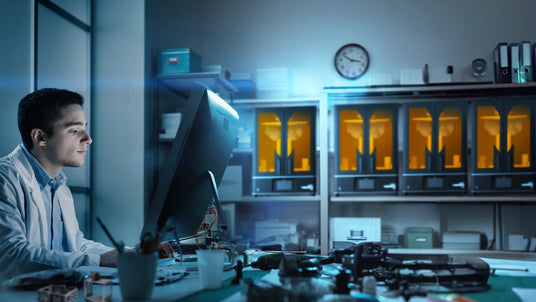

Reduce Turnaround Time From Days to Hours

Develop multiple iterations of functional prototypes within hours by cutting out external vendors and lengthy communication processes, increasing time and resource effectiveness by over 90%.

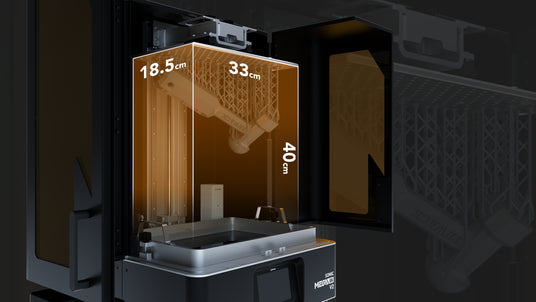

Extra Printing Spaces for Any Prototyping Needs

With Sonic Mega 8K V2’s extra printing space and 43 µm XY-resolution, flexibility is in the palm of your hand. Complete larger prototypes or variations of smaller ones in a single batch, reducing the downtime and further accelerating the testing and development process.

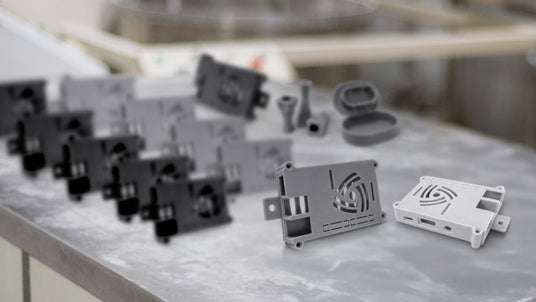

Cost-Effective Small-Batch Production for Testing

Compared to traditional CNC or injection molding, Sonic Mega 8K V2 can quickly produce a small batch of prototypes at just a fraction of the cost. Validate and refine your designs early, ensuring reliable products before committing to larger investments with full-scale manufacturing.

Which is the Best for You?

A table comparing the facets of 2 products
Facet
Phrozen Sonic Mega 8K S 15" LCD 3D Printer
View details
Phrozen Sonic Mighty Revo 14K 10.1" LCD 3D Printer
View details
Price
Price
€1.560,90
€895,40
Printing Volume
Printing Volume
L33 x W18.5 x H30 cm
L22.3 x W12.6 x H23.5 cm
Printing Speed
Printing Speed
Avg. 400 layers/hr
Avg. 450 layers/hr
XY Resolution
XY Resolution
43 µm
16.8 x 24.8 µm
Layer Thickness
Layer Thickness
0.01-0.30 mm
0.01-0.30 mm
Light Source
Light Source
405nm ParaLED® Matrix 3 0
Linear Projection LED Module
LCD Specification
LCD Specification
15" 8K Mono LCD
10.1" 14K Mono LCD (13320 x 5120 pixels)
Printer Size
Printer Size
L47.2 x W38 x H56.6 cm
L35.3 x W34.5 x H51.7 cm
Printer Weight
Printer Weight
26 kg
18 kg
Rail
Rail
Dual Linear Rails
Dual Linear Rails
Screw
Screw
Ball Screw
Ball Screw
LCD 3D Printer

Phrozen Sonic Mega 8K V2 15" LCD 3D Printer

€3.351,70

Printing Volume

L33 x W18.5 x H30 cm

Printing Speed

Avg. 400 layers/hr

XY Resolution

43 µm

Layer Thickness

0.01-0.30 mm

Light Source

405nm ParaLED® Matrix 3 0

Lcd Specification

15" 8K Mono LCD

Operation

3.5" Touch Panel

Slicer Software

CHITUBOX V1.9.6 and above(or others)

Compatible File Format

.CTB/.PRZ

Connectivity

USB

Printer Size

L47.2 x W38 x H56.6 cm

Printer Weight

26 kg

Power Reruirement

AC100-240V ; 50/60HZ

System Power

Max 240W

Rail

Dual Linear Rails

Screw

Ball Screw

Release Film

ACF Film
View product
