Phrozen Arco FDM 3D Printer

€840,94
Tax included Shipping calculated at checkout.

Estimated Lead Time: Q2 2025

  • Multi-color FDM printing with Chroma Kit.
  • Print fast with 40,000 mm/s² acceleration.
  • 300 X 300 X 300 mm³ massive build volume.
  • Various material compatibility.
  • Powered by Klipper firmware.
Shipping & Tariff
Return & Warranty

Specifications

  • Printing Volume
    300 x 300 x 300 mm
  • Framework
    CoreXY
  • Single / Multi-Color
    Multi-Color Compatible
  • Printing Speed*
    Up to 1,000 mm/s ; acceleration up to 40,000 mm/s²
  • Maximum Hotend Flow Rate*
    50 mm³/s
  • Maximum Heated Bed Temperature
    110°C
  • Maximum Nozzle Temperature
    300°C
  • Printing Power
    1,700W @ 220V / 600W @ 110V
  • Power Requirement
    100–240V AC ; 50-60 Hz
  • System Type (Firmware)
    Klipper
  • Slicer
    PIXUP FDM Slicer | Orca Slicer
  • Display Screen
    5-inch Touch Panel
  • Supported Filament
    Works with Chroma Kit

    Drying: PLA, PETG, ABS, ASA, PA, PET
    Printing: PLA, PETG, ASA, PET
    By Default: PLA, PETG, ABS, ASA, PET, TPU

    With Specific Nozzle:
    PA, PC, and carbon/glass fiber-reinforced polymers
    (Requires wear-resistant nozzles and PentaShield)
  • Connectivity
    Wi-Fi I USB
  • Assistance Features
    Built-in Camera: Resolution 720p, 150° Wide Angle Lens

    Material Breakage Detection: Supported

    Printing after Power Outage: Supported

    Auto Leveling: 25-point leveling | Tolerance < 0.05 mm
  • Machine Weight
    22 kg/48.5 lbs
  • Measurements
    492 x 475 x 620 mm
    19.3 x 18.7 x 24.4 inches

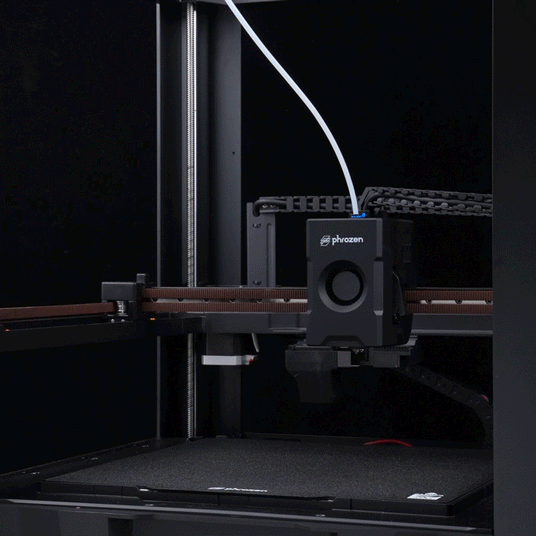

GraviCoreXY™ - Extra Structural Stability

GraviCoreXY™ features a robust frame and a stationary build platform. It features a low center-of-gravity X/Y gantry movement for greater stability and smoother performance.

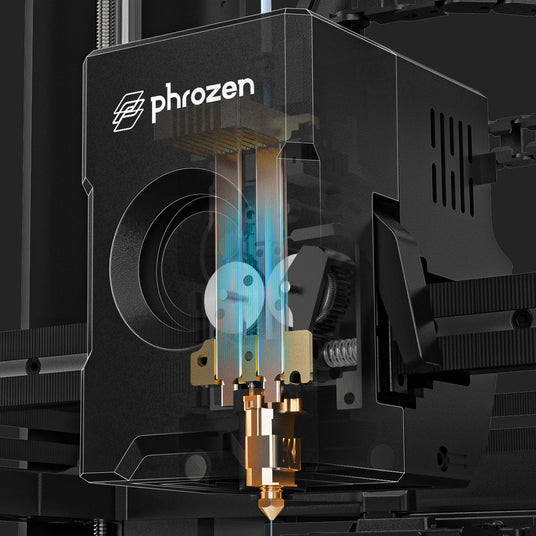

Patented Extrusion for Faster, Cleaner Swaps

ARCO’s patented Direct Extrusion Path moves heat dissipation upward, reducing the distance between the drive gear and nozzle. With a powerful 18mm gear, it delivers enhanced torque and extrusion flow.

Included with ARCO

Phrozen Standard Nozzle

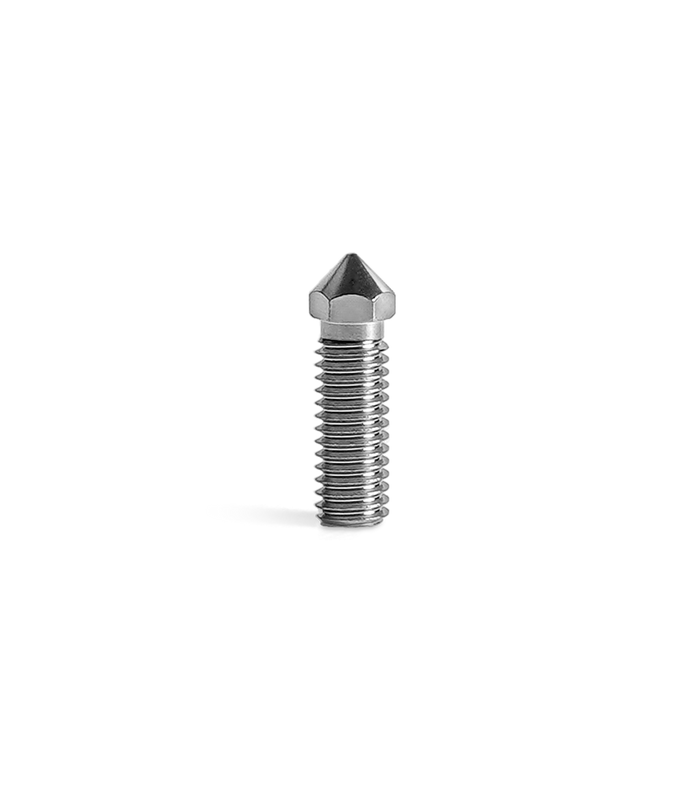

  • Phrozen Standard Nozzle

    The Standard Nozzle handles PLA andPETG with ease, providing good thermal conductivity for consistent everydayprints.Ideal for: good thermal conductivity for general-purpose prints

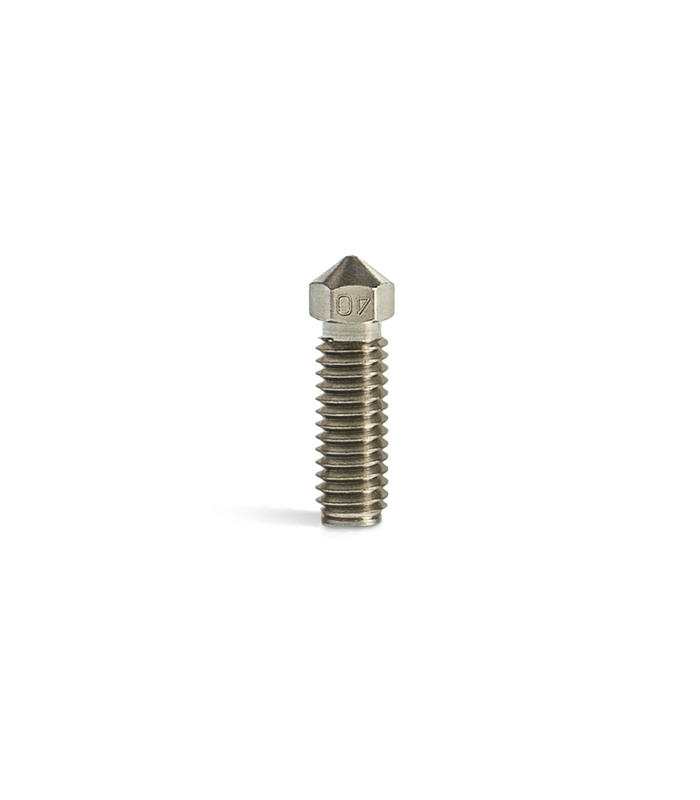

  • Bondtech CHT Nozzle

    Designed for speed and volume, the Bondtech CHT® Nozzle features a high-flow tri-channel core that boosts melting capacity. From reknown Swedish brand Bondtech, it enables ARCO to achieve flow rates up to 50 mm³/s.Ideal for: large-scale, high-speed 3D printing.

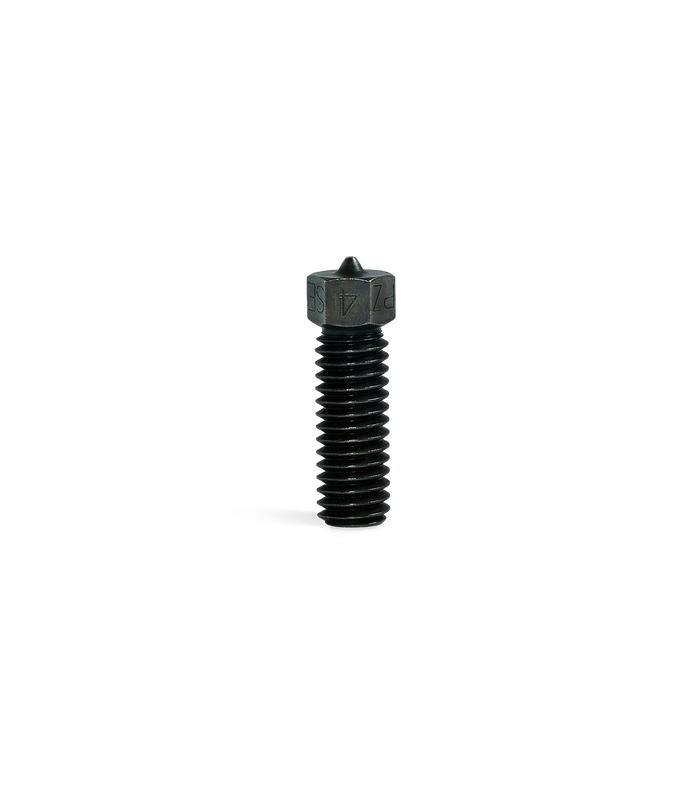

  • Slice Engineering GammaMaster Nozzle

    The GammaMaster® Nozzle features a hardened alloy and Low Gamma™ coating for excellent wear resistance and long-lasting performance. Designed by Florida-based Slice Engineering, its copper-based core ensures efficient thermal conductivity.Ideal for: tough, engineering-grade filaments.

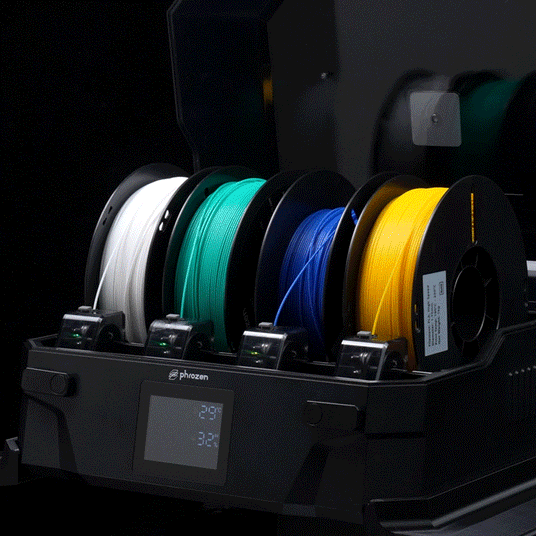

Efficient Filament Switching with Four Filament Feed Tubes

ARCO’s four filament feed tubes near the extruder switching system reduce filament travel, shortening loading time and making filament changes up to 50% faster than common 4-in-1 systems.

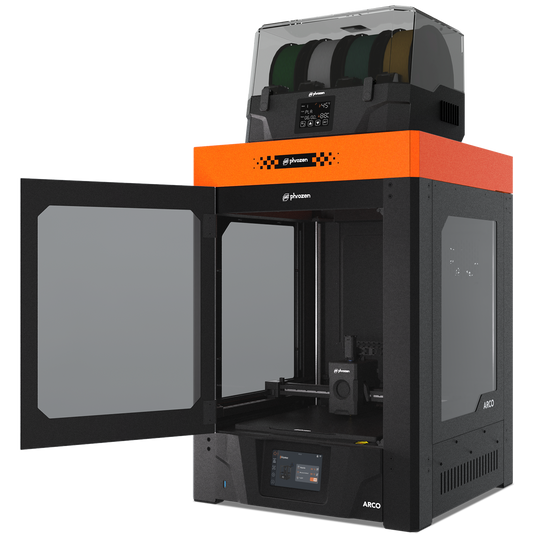

Premium Cover for Stable and Safe Printing

Pentashield is a fully enclosed cover with a carbon-filtered fan that activates at 35°C, maintaining internal temperature, reducing odor, and supporting a quieter, stable printing environment.

Everything You Need to Start Printing

From recommended slicers and materials to verified filament settings, Phrozen provides all the essential resources to help ARCO users get up and running quickly, with great results from day one.
